Double Focusing Thermal Triple-Axis Spectrometers

Contact:    Jeff Lynn, (301)975-6246, Jeff.Lynn@nist.gov

Return to Main Page

As part of the modernization of the thermal neutron spectrometers, a new state-of-the-art triple-axis instrument is operational at the BT-7 thermal beam port, and a second spectrometer is under development to be installed at the BT-1 beam port.  The new instruments take full advantage of the large 16 cm diameter beam tube, with 20×20 cm2 double focusing monochromators. Two monochromators are available, a pyrolytic graphite monochromator for both instruments, and Cu(220) for BT-7 and (planned) Ge(311) for BT-1.  The analyzer system also provides horizontal focusing capability, and together these new capabilities provide signals that are two orders-of-magnitude larger than available with the original thermal triple-axis instruments.  The analyzer system can also be used as the crystal array coupled with a position-sensitive detector in various configurations to allow the simultaneous collection of data over a range of (Q,E).  A schematic of the spectrometer is shown in Fig. 1.

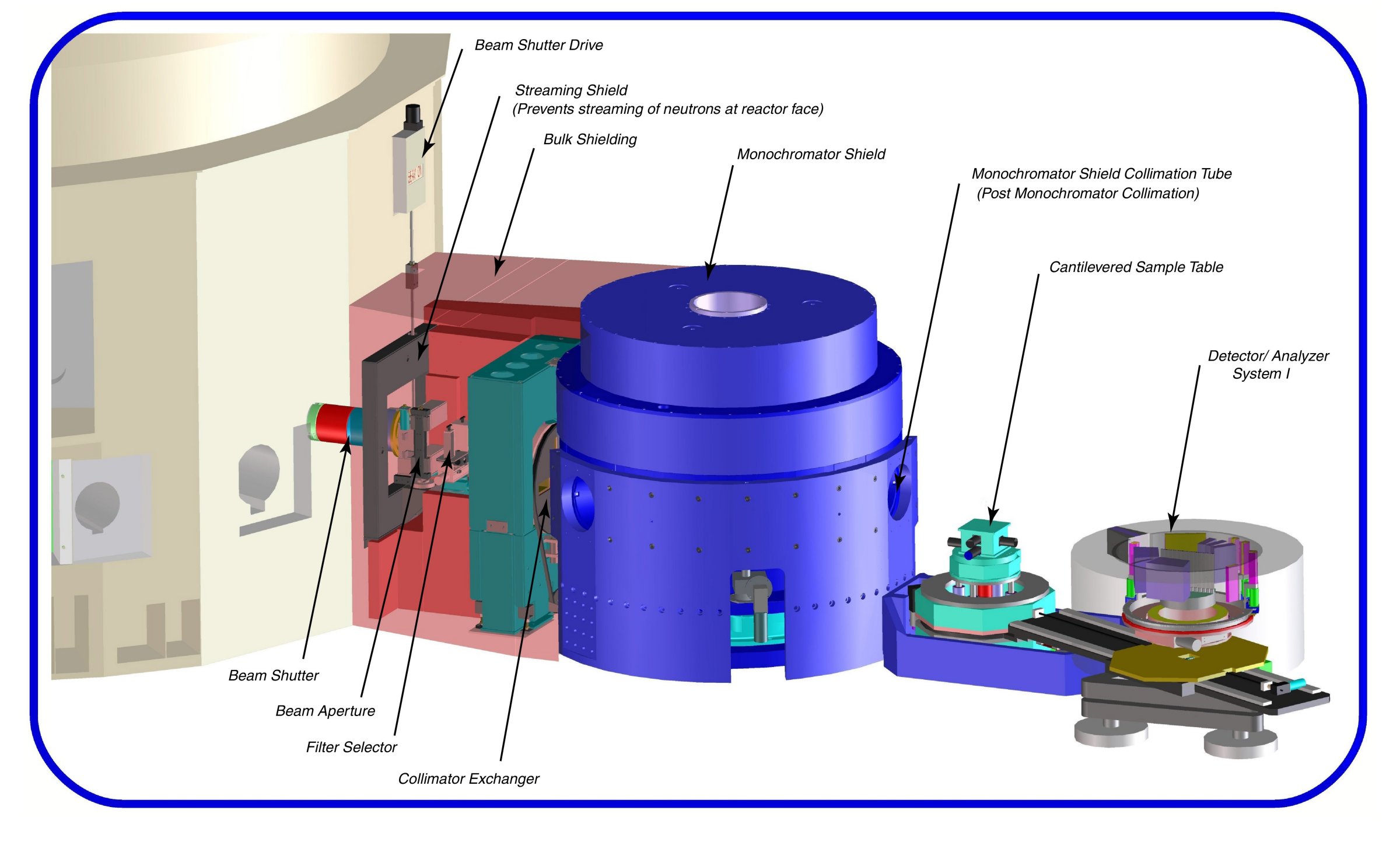

BT7 Layout

Figure 1.  Cut-away layout of the new instrument.  The size of the beam exiting from the source can be varied by a set of slits, and can be passed through a PG filter and a system with a selection of horizontal collimations, before striking the double-focusing monochromator.  The monochromatic beam impinges on the sample table that is cantilevered from the monochromator drum.  The analyzer system is on air pads.

The overall dimensions of the instrument are:

Source to Monochromator:                488 cm

Monochromator to Sample:               206 cm

Sample to Analyzer:                            Variable, from 165 cm to 229 cm

Analyzer (center) to detector:            35 cm



Source Beam Optics

          Beam Shutter

            On the new thermal instruments, the experimental beam shutter is contained within the biological shield of the source, and simply has two positions, open and closed.  Outside the in-pile reactor shutter, all the thermal beam holes are (nominally) identical.  The beam shutter opening is 6.4 cm wide at the exit, opening to 9 cm on the end toward the source.  The vertical opening is 16 cm.  The shutter opens or closes in about eleven seconds.

  Source Beam Limiters

The next element is the variable apertures to reduce the size of the beam from 6.4x16 cm2 to a smaller size when needed.  The blades are composed of compressed lithium fluoride on the surface toward the source, with a 10 cm thick aluminum frame holder behind this filled with B4C.  We did not use any gamma shielding (such as lead to tungsten) on these blades, which greatly reduces the load on the translation system.

Filters

The next element is the filter, which is a tunable pyrolytic graphite (PG) filter system.  No cryogenically cooled filters are installed at this time, but an option for additional filters is included in the design.

 Rotating Collimator Selector

The rotating collimator-exchange system has three Söller-slit collimations, 10', 25', and 50', along with an 8.9 cm wide Open position for maximum intensity and for horizontal energy focusing.

Option for 3He polarizer or other capabilities.

Additional room is included in the design to allow for 3He polarizers.

Monochromator Drum

            The monochromator drum is 213 cm in diameter, with a 40.6 cm inner diameter to accommodate the separate monochromator systems.  The angular range of the drum is from the straight-through position (for optical alignment purposes) to 115 degrees scattering angle.  The practical angular range is from the smallest angle possible due to radiation considerations (~16°), to the largest angle possible given the geometrical constraints imposed by interference with other instruments and facilities.  This is 75° on BT-7, and is expected to be the full 115° on BT-1.

            There are three additional components that have been designed for the monochromator drum.  One is the stationary "pipe" that goes from the edge of the drum on the source side, to the center post. This is an essential piece of shielding, as it determines to a substantial extent the lowest achievable drum angle that can be used on the working instrument.  It also contains a vertical magnetic field for polarized neutrons if a white-beam polarizer (such as  3He) becomes available for the reactor beam.  The size of the neutron beam onto the monochromator is 20 cm high 11 cm wide.  The drum design itself can accommodate a beam considerably wider than 11 cm, and this allows for substantial neutron and gamma shielding here.

            The second item is the double-focusing monochromator systems, and the support and shielding systems associated with these.  Initially we have two monochromator systems, a PG graphite system, and Cu(220).  A Ge(311)monochromator is another possibility in the future.  Each monochromator consists of 100 squares that are 2x2 cm2, with a total height of 20 cm and a width of 20 cm.  The monochromator systems are on an elevator and can be interchanged remotely.

            The third component is the beam optics for the monochromatic beam to the sample.  This has the following capabilities:

a)      Guide field, for polarized neutron beam operation.

c)      Söller-slit collimations, 10', 25', 50', 80', and Open.  The beam width with collimation is 3.8 cm.

d)      Horizontal beam focusing.  Without collimators, there is an option where the beam is converging horizontally (and vertically, of course) onto the sample, with a maximum sample size of 2.5 cm 5 cm high.  This is a "pie-shaped" tungsten shielding plug and mask in order to achieve the desirable low instrumental background.  Changes in collimation are partially automated, and can be accomplished without the need to remove the sample and environmental system from the sample position.

e)      Beam limiters.  At least two pairs, one on the monochromator side and one on the sample side.  These move symmetrically about the nominal beam center both horizontally and vertically.

f)        Sample flux monitor.

g)      Spin Flipper option, in the case of polarized beam operation.  He3 polarizers before and after the sample are available.

h)      Room for other options, such as an extra PG filter, or cold Be filter after the sample, which are available.

i)        An option for optically aligned Söller slit collimation in the vertical direction.

       Sample

             The sample table system is fixed to the monochromator drum (see Fig. 1).  The sample table has a travel of 35 cm along the monochromatic beam direction (toward the monochromator).  This allows the experimenter to vary the maximum scattering angle from the sample, and to allow some flexibility when adding ancillary equipment.  The standard configuration is with the sample table in the fully extended position.

            The sample table has a horizontal angular motion (rotation), and a second concentric horizontal motion is available to allow the independent rotation of a (horizontal field) magnet.  The goniometer with x-y tilts and x-y translations is mounted on an elevator, which has a vertical travel of +2.5 cm above the standard height of 15.25 cm, and 7.5 cm below.  The goniometer is removed and the sample system moved to the full down position to accommodate the 15 Tesla magnet.

            With the exception of the incident beam and the analyzer/detector system, the sample is surrounded by neutron absorbing sample enclosure to reduce experimental background.  There is a beam stop following the sample to "catch" the neutron and gamma beam transmitted by the sample.  This is retractable to allow for low-angle operation of the analyzer system.

  Analyzer/Detector Systems

For the analyzer portion of this machine several different types of systems have been proposed.  Each system attaches to the 2θ arm of the sample table through a hinge mechanism, which allows modest vertical displacements while providing the lateral rigidity necessary to assure the proper angular precision.  The connection is designed in a "quick" coupling modular fashion so that other analyzer/detector systems can be accommodated and quickly interchanged. To achieve this rapid interchangeability, the detector electronics and motor command movements are integrated into each analyzer unit so that the only connections are power, a communications cable, and compressed air.  The unit moves along the floor on an air-pad suspension to accommodate the weight and varied footprint of the sample-analyzer distance. The floor is a poured epoxy base covered by anodized aluminum tooling-plate tiles.

The first new analyzer system installed on BT-7 is a horizontally focused pyrolytic graphite analyzer system as shown in Fig. 2.  This is the only analyzer system presently available.  The analyzer crystal system consists of 13 pyrolytic graphite elements, each 2 cm wide and 15 cm high, with an individual detector where the 13 blades of the analyzer focus, or a position-sensitive detector, at the operator's choice.  This is the modern equivalent of our present analyzer systems, and is the workhorse for the new thermal triple axis instruments.  The blades of the analyzer can be freely rotated by 360 degrees and individually positioned, while the entire unit can be rotated as a whole to achieve the focusing condition.  A straight-through series of 11 detectors are incorporated into the shielding behind the analyzer crystals to continuously monitor the flux of neutrons entering the analyzer system.  A separate diffraction detector is also provided, which can be moved in front of the analyzer if the energy-integrated signal is to be measured, for Bragg peak intensity measurements, and for alignment purposes.  The general design philosophy is to make the instrument as user friendly as possible while still meeting all the desired operating criteria, which includes various beam defining equipment such as magnetic guide field for polarized beam operation, collimators, beam apertures, spin flippers, and filters.  Conventional and radial collimators are included within the analyzer system, eliminating the need to change collimation by hand.

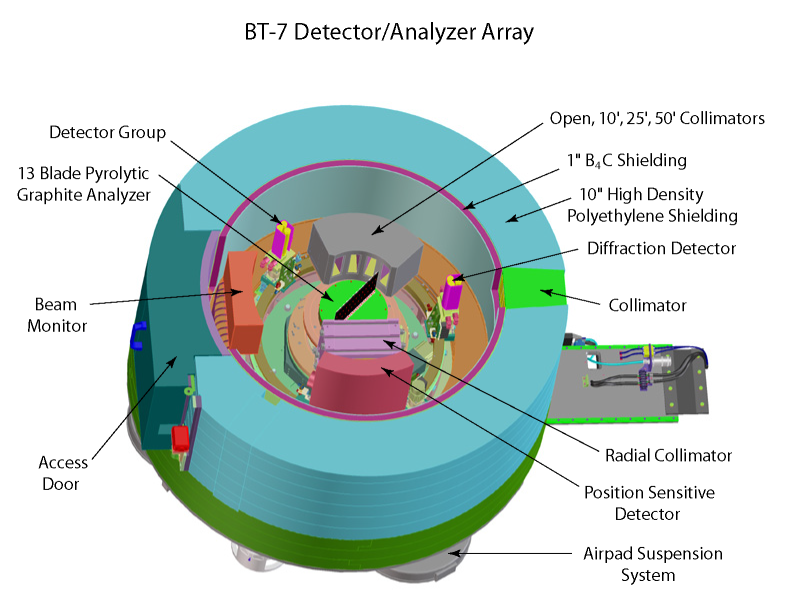

BT7 Dectector Analyzer

                Fig. 2  Horizontally focused pyrolytic graphite analyzer system.



A second proposed type of analyzer system consists of a series of 30 individual and isolated analyzer/detector systems. For the thermal triple-axis instruments each analyzer/detector would be limited to 75° for the detector.  This style of analyzer has now been adopted for the MACS double-focusing cold triple axis instrument, but there it employs a double-crystal system for each detector in order to accommodate higher detector scattering angles needed for cold neutrons.  Other analyzer options, to be developed in the future, include incorporating a velocity selector into the analyzer system, and developing a "conventional" double-focusing analyzer with a single, well-shielded detector and interchangable analyzer crystal systems..
