MODEL

PeakGauss

AUTHOR/MODIFICATION

John Barker 10 FEB 1999

Alan Munter 08 JULY 1999, converted to Java

APPROVED FOR DISTRIBUTION

DESCRIPTION

Model describes a Gaussian shaped peak including a flat background.

Resolution smeared version is also provided.

VARIABLES

Input Variables (default values):

Parameter | Variable | Value |
---|---|---|

0 | Scale | 100.0 |

1 | Peak Position (Å^{-1}) | 0.05 |

2 | Standard Deviation (Å^{-1}) | 0.005 |

3 | Incoherent Background (cm^{-1}) | 0.0 |

**USAGE** **NOTES**

The function calculated is:

with the peak having height of I_{0} centered at q_{peak}
having a standard deviation of sigma. The FWHM is 2.354*sigma.

REFERENCE

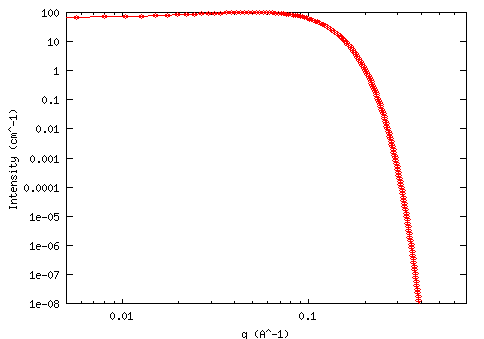

TEST DATASET

This example dataset is produced by calculating the PeakGauss using
300 data points, *q*_{min} = 0.001 Å^{-1},
*q*_{max} = 0.7 (Å^{-1}) and the above default
parameter values.
