Calculates the form factor for an oblate ellipsoid particle with a core/shell structure. The form factor is averaged over all possible orientations of the ellipsoid such that P(q) = scale*< f²>/Vol + bkg, where f is the single particle scattering amplitude and the < > represent the orientational average.

Resolution smeared version is also provided.

Input Variables (default values):

Parameter	Variable	Value
0	Scale	1.0
1	Major Core Radius (Å)	200.0
2	Minor Core Radius (Å)	20.0
3	Major Shell Radius (Å)	250.0
4	Minor Shell Radius (Å)	30.0
5	Contrast (core-shell) (Å-2)	1.0e-6
6	Contrast (shell-solvent) (Å-2)	1.0e-6
7	Incoherent Background (cm-1)	0.0

The function calculated is:

where

and

The returned value is in units of [cm^-1]

Scattering contrast = SLD (core) - SLD (shell) or (shell -solvent) as marked

Parameter[0] (scale), and contrasts (Parameter[5] and Parameter[6]) are both multiplicative factors in the model and are perfectly correlated. No more than one of these parameters can be free during model fitting.

If the scale factor Parameter[0] is set equal to the particle volume fraction, phi, the returned value is the scattered intensity per unit volume, I(q) = phi*P(q). However, no interparticle interference effects are included in this calculation.

It is the users' responsibility to ensure that shell radii are larger than core radii, and that major radii are larger than minor radii.

76-point Gaussian quadrature is used to perform the orientaional averaging, so the calculation may be slow on older machines.

Kotlarchyk, M.; Chen, S.-H. J. Chem. Phys., 1983, 79, 2461.

Berr, S. J. Phys. Chem., 1987, 91, 4760.

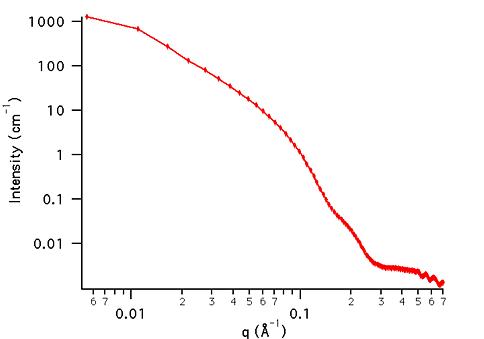

This example dataset is produced by calculating the OblateCoreShell using 128 data points, q_min = 0.001 Å^-1, q_max = 0.7 Å^-1 and the above default parameter values.
