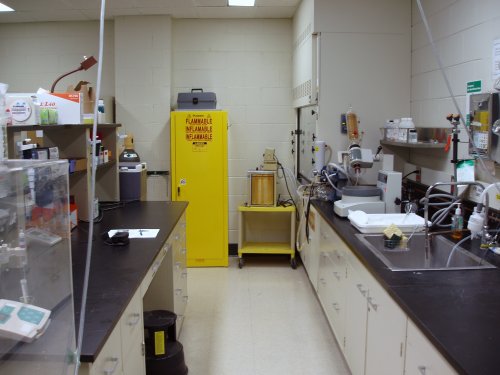

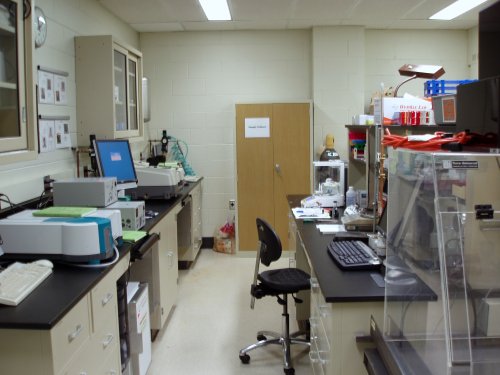

Laboratory E136 - Sample Characterization Laboratory

Sartorius CP224S Balance |
Balance Top Loader |
Büchi TO-51 |
Density Meter |
Dynamic Light Scattering
Fourier Transform Infrared |
Freezer |
pH Meter |
Micro-Pipetters |
Lab Press |
Roller Mixer |
Stirrer-Hot Plates
Temperature Cabinet |
Trough |
Ultrafiltration Cell |
UV-Visible Spec. |
Vortex Mixer |
Ultrasonic Cleaner |
Other Equipment
Balance - Analytical
Sartorius CP224S
Precision: ± 0.1mg
Specifications:
- Weighing capacity: 120g
- Readability: 0.1mg
- Tare range (subtractive): -120g
- Repeatability: <±0.1mg
- Linearity: <±0.2mg
- Response Time: <0.2s
- Operating temperature range: +10 to +30 °C
- Allowable ambient operating temperature: +5 to +40 °C
- Pan Size (inner diameter): 80mm
- Weighing chamber height: 232mm
Date of last Calibration: August 15, 2008
Calibration Report available by request: Kimberly Tomasi, A121, 301-975-4533.
TOP
Balance Top Loader
Ohaus GT 4800
Precision: 0.1/±0.01g
Specifications:
- Weighing range:
- Readability:
- Taring (by subtraction):
- Pan size:
- Below Balance Weighing:
- Weighing chamber:
- Dimensions (w x h x d)
- Operating temperature range:
Date of last Calibration: August 15, 2008
Calibration Report available by request: Kimberly Tomasi, A121, 301-975-4533.
TOP
Büchi TO-51
Specifications:
- Dimensions: 260 x 140 x 220 mm (without drying tube)
- Oven Chamber: 50 mm diameter x 200 mm
- Drying Tube: 43 mm diameter x 210 mm (usable space)
- Temperature Range: 30 to 300 °C, infinitely variable
- Temperature Regulation: electronic, zero crossing
- Temperature accuracy: ± 10 °C in the middle of the oven
TOP
Density Meter
Anton Paar
Model DMA 5000
This instrument is used to perform accurate density measurements over a specified density, temperature, and viscosity range. At the end of an analysis, the results are either sent to an external printer or transmitted and stored by the AP-Soft Print Microsoft Excel Add-In.
Specifications:
- Density Measuring Range: 0 to 3 g/cm3
- Density Accuracy: ±0.000005 g/cm3
- Density Repeatability: 0.0000001 g/cm3
- Minimum Sample Volume: 1ml
- Temperature Range: 0 to 90 °C
- Temperature Accuracy: ±0.01 °C
- Temperature Repeatability: 0.001 °C
- Pressure Range: 0 to 10 bar
To use the instrument, please contact:
TOP
Dynamic Light Scattering
DynaPro-LSR (99-E-15)
Protein Solutions, Inc.
Specifications:
- Uses: Measuring the particle size (hydrodynamic radius) in solution and the corresponding diffusion coefficient
- Particle Size Probed: 1 nm to 1 mm in hydrodynamic radius
- Sample Volume: 45 ml quartz cuvettes
- Temperature Range: 0 to 60 °C
- Data Acquisition Time: 1 to 360 seconds/interval
- Software Interface: Dynamics™ data collection and analysis software.
- Hardware Interface: 248 channel autocorrelator with multi-tau scheme starting at 0.48 msec.
- Laser Power Control: 10% - 100%.
- Wavelength: 783 nm

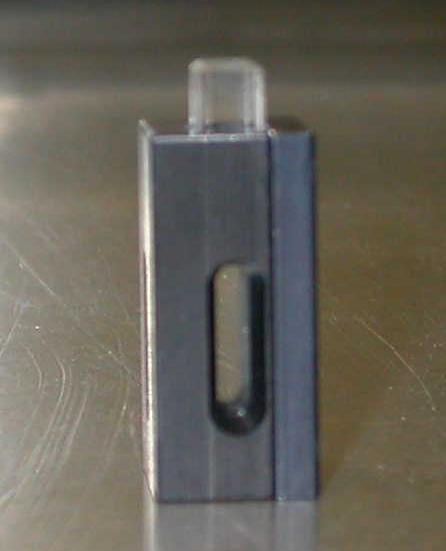

- Sample Volume: 45 ml quartz cuvettes (image)
To use the instrument, please contact:
TOP

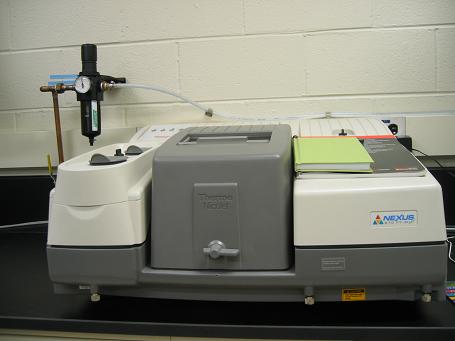

Fourier Transform Infrared Spectrometer
Nexus 670
ThermoNicolet
The Instrument | Materials | Sample Environments | Contacts
The Instrument
We currently use a high resolution (0.1 cm-1) Nicolet Nexus 670 that is flexible in both its current iteration and is upgradeable for future needs. The optics are fully optimized and computer controlled for ease of use. Changing spectral range is as easy as removing an optical component and placing the new one into its position. The software automatically updates ranges, sensitivity and parameters. Some of this is sensitive, so for first time users we ask that they approach us for a quick run through, especially if optics are to be switched out. The main components are listed below with the available options.
Source
Everglo (gives good/fair intensity over all of the wavelengths of interest to us.)
Beam splitters
KBr
Far-ir
Detectors
DTGS with KBr (12,000 cm-1 to 350 cm-1) or polyethylene (700 cm-1 to ~10 cm-1) windows
MCTA liguid nitrogen cooled for high sensitivity (11,700 cm-1 to 600 cm-1).
Purge
The spectrometer is continuously purged with dried, CO2 free air.
FTIR TOP
TOP
Window Materials
| Window Material |
Useful Range cm-1 |
Size |
Comments |
| KBr |
43,500 - 400 |
32 x 3 mm (Undrilled Only) |
Soluble in water, alcohol and glycerine. Slightly soluble in ether. Hygroscopic. |
| NaCl/td>
| 40,000 - 600 |
32 x 3 mm (Drilled & Undrilled) |
Soluble in water and glycerine. Slightly soluble in ether. |
| Quartz |
43,500 - 3000 |
32 x 3 mm (Drilled & Undrilled) |
Unaffected by most solvents. |
| ZnSe |
20,000 - 500 |
32 x 3 mm (Drilled & Undrilled) |
Insoluble in water. High resistance to chemical attack. Organic solvents, dilute acids and bases have no effect. |
FTIR TOP
TOP
Sample Environments
Econo-mount
A holder designed to reproducibly position the Econo-Press, Econo-Cell, Econo-Gas Cell, infrared quartz cylindrical cuvettes or various sized windows in the sample beam .
Magnetic film holder
The Magnetic Film Holder is used to hold thin film strips in position for spectral analysis. The holder uses magnetic rubber strips to secure the sample to the back plate.
Stock powders/mulls
We have KBr, nujol and fluorolube for mixing powders or creating mulls.
Econo-cards
These are holders with self-adhesive apertures for mounting KBr pellets, discs and films. Each 2" x 3" card is preprinted for recording data and installs in the FTIR slide mount.
Econopress
The Econo-Press is an economical die used to form 10 mm KBr pellets. Spectra can be obtained with the pellet in the press, or placed in an Econo-Card for analysis and storage.
Presslok demountable holder
Used with infrared windows, creates an easy-to-use transmission cell for analyses of mulls and smears.
Demountable pathlength Cell
An easy-to-use transmission cell for analyses of liquids, mulls, and films. Two Leur-Lok Teflon stoppered ports make filling and cleaning the cell simple and fast. To change the pathlength, simply substitute a spacer of the desired thickness. The windows are 32 mm in diameter.
Table Press Kit
Includes a 3 mm Die Set, which consists of an upper and lower anvil, six sample collars with a 3 mm aperture, a silicone ejector collar and a pellet holder. The pellets are pressed using light operator pressure and are placed in a collar that can be transferred onto the provided pellet holder for analysis.
100mm demountable gas cell
The cells are constructed of Pyrex and use standard 32 mm windows. Each cell slides into a protective aluminum sleeve holder, which fits into the standard slide mount in the spectrometer’s sample compartment.
Quartz cuvette cells
Rectangular cells with 10mm pathlength and holder.
Diffuse reflectance
The Smart Diffuse Reflectance allows samples to be analyzed as is, with a slight amount of grinding or by grinding and mixing with potassium bromide. Diffuse reflectance provides non-destructive analysis for a wide variety of samples. The DRIFTS technique can also be used in conjunction with silicon carbide paper for large intractable surfaces.
Model HC-32 Heated/Cooled Demountable Cell Kit
The Model HC-32 Heated/Cooled Demountable Cell Kit is used in conjunction with a recirculating bath for heating and cooling applications. The temperature range is determined by the recirculating bath, and a separate temperature controller is not required for operation of this cell.
Smart Orbit Accessory
The Smart Orbit accessory is a high-performance diamond single-bounce ATR accessory. This accessory offers users the many advantages of diamond ATR technology including the ability to analyze hard, abrasive, or caustic materials. It uses a real Type IIA diamond for ruggedness and versatility.
* All pictures and references are taken from the Thermo-electron website.
FTIR TOP
TOP
Contacts
To use the instrument, please contact:
FTIR TOP
TOP

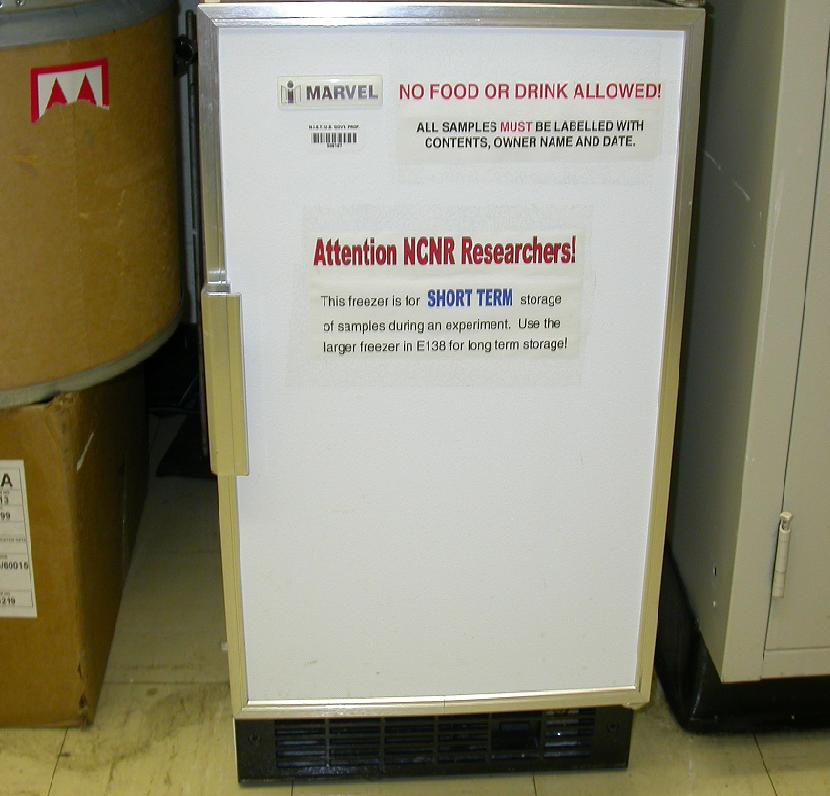

Freezer
Marvel R134A
Specifications:
TOP

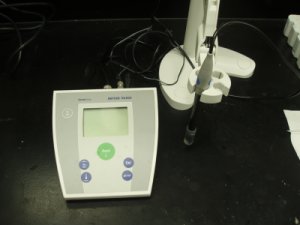

Bench top Meter
Cole Parmer Economy ph/mV/°C
Specifications:
- pH range: 0.00 to 14.0 pH
- Resolution: 0.01 pH
- Relative Accuracy: ±0.01 pH
- Slope Range: 80% to 110%
- Temperature: 0.0 to 100.0°C
- Resolution: 0.1°C
- Relative Accuracy: ±0.5°C
- ISE Millivolt Range (400 mV): -400 to 400mV
- Resolution: 1 mV
- Relative Accuracy: ±0.2 mV
- Overall Milllivolt Range (199 mV): -1999 to 1999mV
- Resolution: 1 mV
- Relative Accuracy: ±2 mV
- Meter Dimensions: 7.2" L x 9.2" W x 2.52" H
- No. of buffer values: 3
- No. of Calibration points: 1 to 3 Points
Bench top Meter
Metler Toledo SevenEasy ph/mV/°C
Specifications:
- pH range: 0.00 to 14.0 pH
- Resolution: 0.01 pH
- Relative Accuracy: ±0.01 pH
- Overall Milllivolt Range: -1999 to 1999mV
- Resolution: 1 mV
- Relative Accuracy: ±1 mV
- Temperature: -5.0 to 105.0°C
- Resolution: 0.1°C
- Relative Accuracy: ±0.5°C
- No. of buffer values: 3
TOP
Pipettes
Rainin Pipetman®
Models:
P-10
P-100
P-1000
P-20
P-200
P-5000
*Day of last calibration: August 15, 2008
TOP

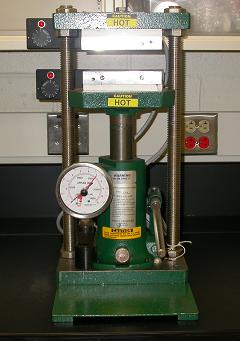

Laboratory Press
Carver Laboratory Press Mini-C
Information:
- Specifications: See the pdf file.
- Contact: Ms. Yamali Hernández, 301-975-5295, yamali@nist.gov
TOP
Roller-Mixer
Bibby Sterlin
Catalog Number DSRT1014
Specifications:
TOP
Stirrers and Hot Plates
Corning
Model PC-220
Specifications:
- Temp. Range: 25-550° C
- Stir Range: 60-1100
Corning
Model PC-420
Specifications:
- Temp. Range: 25-550° C
- Stir Range: 60-1100
TOP
Temperature Cabinet
Sable Systems International
Model PELT-5 Controller & PTC-1 Cabinet
The PELT-5 temperature controller and PTC-1 temperature cabinet combine to form a lightweight and portable temperature control system. The cabinet temperature can be held at a constant temperature or ramped up or down at a controlled rate for a set duration.
Specifications:
- Temperature Range: ~5-60 °C
- Temperature Accuracy: ±0.2 °C
- Internal Cabinet Volume: 30L
- Control Stability: Dependant on sensor placement, but typically <0.02°C RMS
Contact: Mrs. Kimberly Tomasi, 301-975-4533, kimberly.tomasi@nist.gov
TOP
Langmuir-Blodgett Trough
NIMA LB 2011 Langmuir Trough with linear dipper
This instrument is primarily designed and optimised to produce Langmuir-Blodgett films on solid substrates, but could also be used to investigate monolayer compression behvior.
Specifications:
Trough parameters
- Round trough, area 15 to 1000 cm2
- Two barriers under computer control, can be operated independently or in coupled mode
- Barrier speed 6 to 700 cm2 /min
- Nima model PS4 pressure sensor centrally mounted
- Single dipping well, 100mm x 80mm rectangle, 60mm deep from the floor of the trough.
- Can be connected to circulating water bath for temperature control (none normally connected)
- Located in a HEPA low particulate matter flow hood
Dipper parameters
- Langmuir model D1L dipper with sample mountings for microscope slides or 3" diameter wafers
- Linear velocity dipping, 0.8 to 66 mm/min velocities
- Capable of multiple dipping programs. automatically maintained at constant pressure
Further Information is available at the NIMA website
To use the instrument, please contact:
TOP
Stirred Ultrafiltration cell
Millipore
Capable of rapid concentration, or salt removal followed by concentration in the same unit. Additional information can be found on the Millipore website
Specifications:
| Stirred Cell |
Model 8003 |
Model 8010 |
Model 8050 |
| Max Process Volume, mL |
3 |
10 |
50 |
| Min. Process Volume, mL |
0.075 |
1.0 |
2.5 |
| Membrane Diameter, mm |
25 |
25 |
44.5 |
| Effective Membrane Area, cm2 |
0.9 |
4.1 |
13.4 |
| Hold-Up Volume, mL |
0.07 |
0.2 |
0.5 |
| Height, cm |
7.7 |
7.7 |
9.8 |
| Base, cm x cm |
6 x 6 |
6 x 6 |
7 x 7 |
| Weight, kg |
0.1 |
0.1 |
0.2 |
TOP

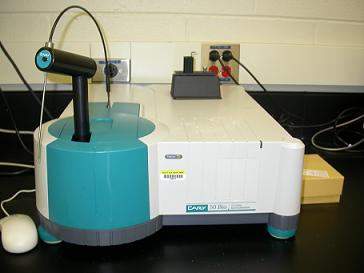

UV-Visable Spectrometer
Varian
Cary 50 Series
Specifications:
- Specifications are given in a pdf file.
- An article was published outlining how the Varian is able to study photochemical reactions in situ.
UV-Visable Accessories
UV-VIS Cells
The cells hold approximately 3ml.
Single Cell Peltier Thermostatted Cell Holder
The single cell peltier cell holder can be used with the Cary 50 to perform measurements at fixed temperatures and also includes an inbuilt electromagnetic stirring mechanism for ease of use. It is ideal for single cell kinetics measurements where accurate temperature control is required. It consists of a single 10 mm cell holder and a temperature control module. It also features electromagnetic stirring.
TOP
VORTEX
Daigger Vortex
Genie 2
Specifications:
- The VORTEX-GENIE 2 mixer is classified as "Installation Category 2"
- Environmental: 0°C - 38°C, Humidity 95%
TOP
Ultrasonic Cleaner
Branson
Model 2510-DTH
Specifications:
- Tank Capacity: 0.75 gal
- Tank Size (LxWxD): 9.5" x 5.5" x4"
- Temperature Range: ambient to 69°C
- Temperature Accuracy: ±4°C
TOP

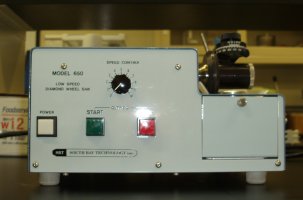

Low Speed Saw
Buehler
Information:
- Specifications: See the pdf file.
- Contact: Dr. John Barker, 301-975-6732, john.barker@nist.gov
South Bay technology
Information:
- Specifications: See the pdf file.
- Contact: Dr. Joe Dura, 301-975-6251, joe.dura@nist.gov

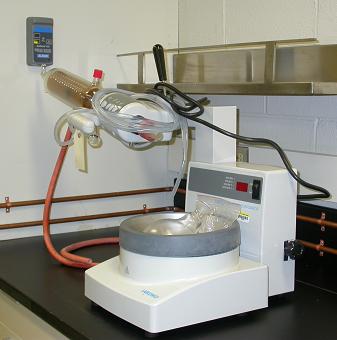

Rotary Evaporator
Labconco
Model 78892-00
Information:
- Specifications: See the pdf file.
- Contact: Ms. Yamali Hernández, 301-975-5295, yamali@nist.gov
TOP
*NOTE: Some PDF files require Abode Acrobat Reader version 4.0 or higher. Please download the latest version
