Balance - Analytical
Sartorius CP224S
Precision: ± 0.1mg
Specifications:
- Weighing capacity: 120g
- Readability: 0.1mg
- Tare range (subtractive): -120g
- Repeatability: <±0.1mg
- Linearity: <±0.2mg
- Response Time: <0.2s
- Operating temperature range: +10 to +30 °C
- Allowable ambient operating temperature: +5 to +40 °C
- Pan Size (inner diameter): 80mm
- Weighing chamber height: 232mm
Date of last Calibration: August 15, 2008
Calibration Report available by request: Kimberly Tomasi, A121, 301-975-4533.
TOP

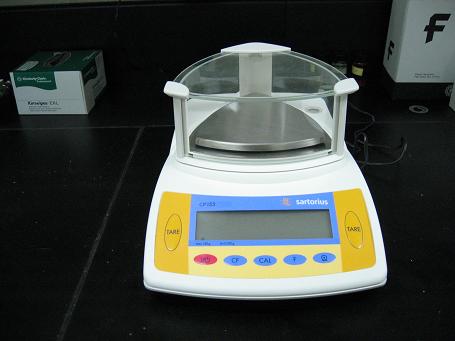

Balance Top Loader
Sartorius CP153
Precision: 1mg
Specifications:
- Weighing capacity: 150
- Readability: 0.001g
- Tare Range: -150g
- Repeatability: <±0.001g
- Linearity: <±0.001g
- Response Time: <1.5s
- Operating temperature range: +10 to +30 °C
- Allowable ambient operating temperature: 0 to +40 °C
- Pan Size (inner diameter): 110 mm
- Weighing chamber height: 50mm
Date of last Calibration: August 15, 2008
Calibration Report available by request: Kimberly Tomasi, A121, 301-975-4533.
TOP
Circulating Bath
Lauda Ecoline E100
Specifications:
- Ambient temperature: 5 to 40° C
- Setting resolution: 0.1° C
- Indication resolution: 0.1° C
- Indication accuracy: ±0.4° C ±0.5 % additive re-calibration from indicated value
- Temperature control: ±0.05 ° C
*Immersion thermostats
- Operating temperature range: 25 to 120° C
- Pump type: Pressure pump with the choice of 5 output steps
- Max. discharge pressure: 0.4 bar
- Max. flow rate: 20 l/min
- Bath depth: min 150 mm
- Usable depth: min 100 mm
- Overall size: 125 mm W x 133 mm D
- Height (H): 315 mm
TOP
Centrifuge
Eppendorf
Model 5810R
Refrigerated bench-top centrifuge
Specifications:
- Max. Rotational Speed: Excess current switch 12 A / 15 A
- Max. centrifugal force: 14 000rpm
- Temperature range: -9 to 40 °C
- Max. load: 4 x 250ml
- Max. density of the material to be centrifuged: 1.2 g/ml
- Permitted ambient temperature during operation: 10°C to 35°C
- Permitted relative humidity: 75 %
Rotor:
- A-4-62
- Max. rotational speed: 4,000 rpm
- Temp. at max rotational speed: < 4°C
TOP
Centrifuge
Eppendorf
Model 5415R
Specifications:
- Max. rotational speed: 13,200 rpm
- Max. centrifugal force: 16,100 rcf
- Max. load: 24 x 2.0 ml Safe-Lock Micro Test Tubes or 36 x 0.5 ml tubes
- Max. density of material to be centrifuge: 1.2 g/ml
- Ambient temperature: 15°C -35°C
- Max. relative humidity: 75%
Rotor:
- Standard rotor F45-24-11
- Max. rotational speed: 13,200 rpm
- Max. centrifugal force: 16, 100 rcf
- Max. energy content: 3,100 Nm
TOP
Degasser
Degassit™ HPLC Solvent Degasser
Part number: 6414
Specifications:
- Number of channels: 4
- Flow rate per channel: Up to 3ml/min
- Residual Oxygen: 0.7ppm
- Channel volume: 0.36 psi
- Composition of flow path: PTFE, PPS, ETFE
- Dimensions (W x H x D (in)): 2 x 3.2 x 10.25
- Weight: 1.5 kg
TOP
Fume Hood
Air Control Inc.
Microvoid 4F
Specifications:
- Class 100 laminar flow environment
- Polypropylene cabinet and work surface
- Deionized water from both the sink and spray gun
- Nitrogen air gun
- Three acid work areas:
- HF Tank
- Heated Quartz Bath
- Quick Dump Rinser with resistivity monitor
- Connected to the building acid neutralization tank
See the pdf instructional manual for more information.
TOP
Ice Machine
Cornelius
Model JEACS50SLF-1
Specifications:
- Dimensions (H x W x D (in inches)): 34 x 15 x 24
- Cube Size (W x D x H, inches): ¾ x 3/8 x ¾
- Ice Made Per 24 Hours: 46 lb (at 21°C air, 10°C water)
TOP
Freezer
Revco Legaci™
ULT-2140-9A
Specifications:
- Capacity: 51.1 cu. ft
- 0.1° C resolution from 1° C to 8° C
- Temperature Setpoint: 4° C
- Alarm Setpoints: 5.5° C overtemperature
1.5° C undertemperature
TOP
Mini-Extruder
Avanti Polar systems
Specifications:
- See the PDF file for the extruder specs.*
TOP

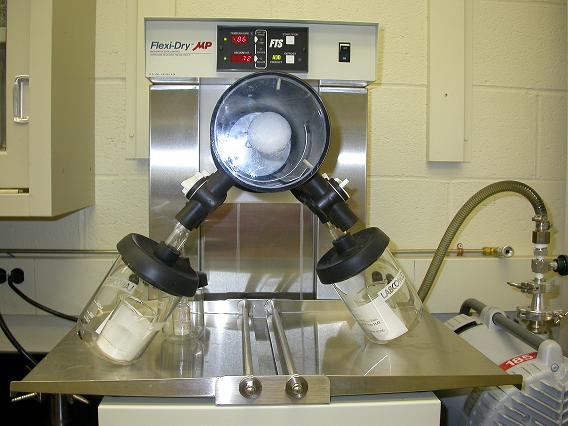

Lyophilizer
Flexi-Dry MP
Model: FD-3-85A-MP
Specifications:
- Please see the manufacturers web site.
- Specifications are given in this pdf file.
TOP
Peristaltic Pump
Rainin
Model Dynamax RP-1
Specifications:
- Head speed: 0 to 48 rpm
- Torque: greater than 3 N-m across full operating range at 115VAC
- Speed Stability: 0.5%
- Speed adjustment: 0.00 to 9.99 rpm in 0.01 rpm increments
10.0 to 48.0 rpm in 0.1 rpm increments
- Flow rate: 0-37 ml/min max at 0 backpressure (depending on tubing diameter)
- Max back-pressure: 70 psi
- WEtted surfaces: PVC, Silicon, Viton (tubing only)
- Flow tubing diameter: 0.25mm ID- 4 mm ID
- Temperature: 4° to 40 °C
- Humidity: up to 95% non-condensing
- Operating position: vertical ±5°
TOP
pH Meter
Accumet© Research
Model AR25
Specifications:
- meter size: 5.5" x 7.5" x 3.25"
- operating temperature: 5-45°C
- memory: 250 data pts.
- keyboard controls: context specific touchscreen
| Mode | Range | Resolution | Relative Accuracy | Notes |
|---|
| pH | -2.000 to 20.000 | 0.1/0.01/0.001 | ±0.002 |
automatic buffer recognition: yes
manual buffer recognition: yes
calibration points: 5
auto lock: yes
FET: yes
|
| mV | ±1800.0 | 0.1 | ±0.1 | |
| Ion | 1x10-6 to 9.99x1010 | 0.1/0.01/0.001 | ±0017n% |
calibration points: 5
incremental methods: KA,KS,AA,AS |
| Temperature | -5.0 to 105.0 °C | 0.1 °C | ±0.2°C |
|
Bench Top Meter
Fisher Scientific Education pH and °C
Specifications:
- pH Range: 0.00 to 14.00 pH
- pH Resolution: 0.01 pH
- pH Relative Accuracy: &plusminus;0.01 pH
- Temperature Range: 0.0-100°C
- Temperature Resolutione: 0.1°C
- Temperature Accuracy: 0.3°C
TOP
Pipettes
Rainin Pipetman®
Models:
P-10
P-100
P-1000
P-20
P-200
P-5000
*Day of last calibration: August 15, 2008
TOP
Refrigerator
Revco Chromatography Refrigerator
Model REC5004A20
Specifications:
- Capacity: 51.1 cu. ft
- 0.1° C resolution from 1° C to 8° C
- Temperature Setpoint: 4° C
- Alarm Setpoints: 5.5° C overtemperature
1.5° C undertemperature
TOP

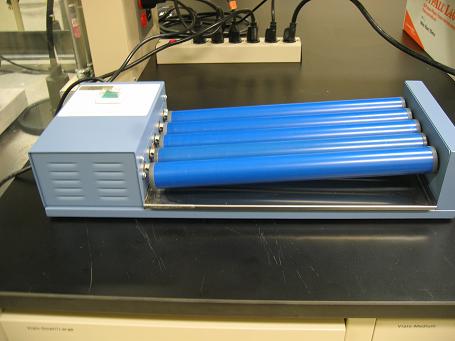

Roller-Mixer
Bibby Sterlin
Catalog Number SRT1
Specifications:
TOP
Stirrers and Hot Plates
Dylastir© Stirrer
Model 941006
Corning
Model PC-220
Specifications:
- Size: 4" x 5" Pyroceram© top
- Temp. Range: 25-550° C
- Stir Range: 60-1100
Corning
Model PC-420
Specifications:
- Temp. Range: 25-550° C
- Stir Range: 60-1100
Corning PC-420D
Specifications:
- Temperature range: 5-550° C
- Size: 5" x 7" Pyroceram® top
- Stir range: 60-1100 rpm
TOP
Ultrasonic Processor
Specifications:
TOP
Ultrasonic Cleaner
Branson
Model 3510-DTH
Specifications:
- Tank capacity: 1.5 gal
- Tank size: (L x W x D) 11.5" x 6" x 6"
- Temperature accuracy: ±4 °C
- Temperature range: ambient to 69 °C
Branson
Model 1510
Specifications:
- Tank capacity: .5 gal
- Tank size: (L x W x D) 11.5" x 6" x 6"
- Temperature accuracy: ±4 °C
- Temperature range: ambient to 69 °C
TOP
VORTEX
Daigger Vortex
Genie 2
Specifications:
- The VORTEX-GENIE 2 mixer is classified as "Installation Category 2"
- Environmental: 0°C - 38°C, Humidity 95%
TOP
Vacuum Pump
Vacuubrand PC101
Specifications:
- Max. pumping speed: 1.7/2.0 m3/h
- Ultimate (total) vacuum (absolute): 9 mbar
- Max. permitted outlet pressure: 2 bar
- Max. pressure difference between inlet and outlet: 2 bar
- Permitted ambient temperature storage/operation: -10 to 60 °C/10 to 40 °C
- Permitted relative atmospheric moisture during operation: 30 to 85% Rh
TOP
Other Equipment
Shaker
Barnstead/Thermolyne
Model M48725
Specifications:
Milli-Q Water System
Specifications:

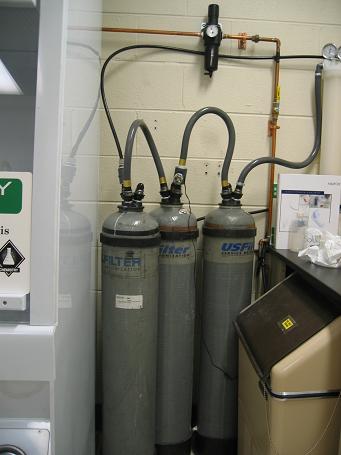

DI Water System - Provided by US Filters
Specifications:
- Resistivity: 15-20 MΩ
- Organic Content: 20-50 ppm
- Particulate Matter: <0.2 µm
TOP
