Furnace - Tube

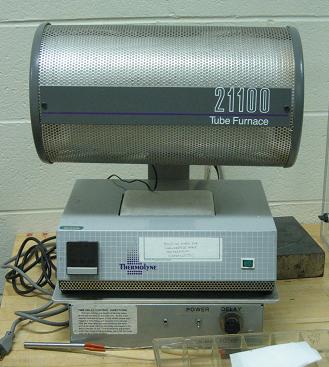

Thermolyne Tube Furnace
Model F21100

Specifications:

• Accepts Process Tubes 1 and 2 Dia. (2.5 and 5.1)
• Amps: 11.3
• Hertz: 50/60
• Length IC: 12 (30.5)
• Operating Temp Range C: 100-1200
• Overall Dimensions D: 12" (30.4)
• Overall Dimensions H: 14.63" (37.1)
• Overall Dimensions W: 16" (40.6)
• Product Line Thermolyne
• Shipping Weight LK: 26 (11.8)
• Volts: 120
• Watts: 1350

Please see the manual (pdf) for further specifications.

TOP

---

Furnace - High Temperature

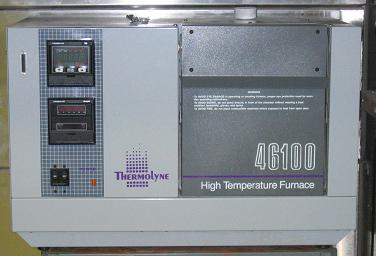

Thermolyne High Temperature Furnace
Model 46100

Specifications:

• Amps: 40
• Chamber Cubic Inches L: 216 (3.5)
• Chamber Dimensions D: 6 (15)
• Chamber Dimensions H: 6 (15)
• Chamber Dimensions W: 6 (15)
• Hertz: 50/60
• Operating Temp Range C: 800-1700
• Overall Dimensions D: 18 (45.7)
• Overall Dimensions H: 18.5 (46.9)
• Overall Dimensions W: 28 (71.1)
• Product Line: Thermolyne
• Shipping Weight LK: 165 (74.8)
• Stabilization Amps: 10
• Stabilization Watts: 2500
• Volts: 240
• Watts: 9600

Please see the manual (pdf) for further specifications.

Muffle Furnace
Thermolyne Model 48000

Specifications:

• Chamber Dimensions (WxDxH): 7" x 5" x 10"
• Overall Dimensions (WxDxH): 13.25" x 19" x 19.5"
• Operating Temp Range: 100 to 1200 °C
• Wattage: 1800

TOP

---

Planetary Micro Mill

Fritsch Pulverisette 7

Specifications:

• Working Principle: Impact Force
• Maximum Feed Size: 5mm
• Maximum Sample Quantity: 40ml
• Minimum Sample Quantity: 0.5ml
• Final Fineness: <0.5µm
• Typical Grinding Time: 8 min
• Grinding Process: Dry/Wet
• Speed of Main Disc: 100 to 800 rpm
• Transmission Ratio: i_relative = 1:-2

For more information, please see this pdf.

TOP

---

Surface Area and Pore Size Analyzer

Quantachrome Autosorb-1-C

Specifications:

• Pressure Tranducers:
• Range: 0 to 1000 torr
• Accuracy: ±0.11% full scale
• Minimum Resolvable Pressure: 2.5x10^-4
• Minimum Resolvable Pressure (P/P_o): 3x10^-7 (nitrogen)
• Ultimate Vacuum: 1.1x10^-3
• Adsorbates: Non-corrosive Gas (N₂, Ar, CO₂, C₄H₁₀, etc.)
• Temperature Capabilites:
• Degas Heating Mantles with heating up to 400 °C ±5 °C
• Auto-Leveling, Two liter, 60 hour Cooling Bath
• Surface Area Analysis:
• Nitrogen Range: 0.05 m²/g with no known upper limit
• Krypton Range: 0.0005 m²/g with no known upper limit
• Pore Analysis:
• Detectable Volume Limit: <0.0001 cc/g
• Pore Diameter Range: 3.5 to 5000 Å with nitrogen

Please see the manual (pdf) for further specifications.

TOP

---

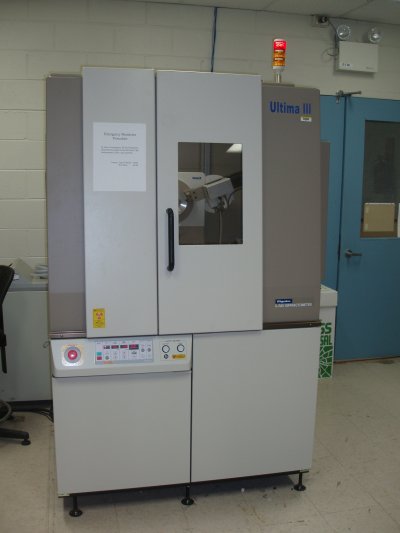

X-Ray Diffractomer

Rigaku Ultima III

Features:

• θ/θ design for horizontal sample mounting
• Fully automatic system alignment
• High resolution optics

*NOTE* Use of this instrument is restricted to NCNR staff. Outside users can gain access to the x-ray diffractometer through their local contact or NCNR staff collaboration.

Please contact Taner Yildrim (301-975-6228, taner.yildrim@nist.gov) for more information.
