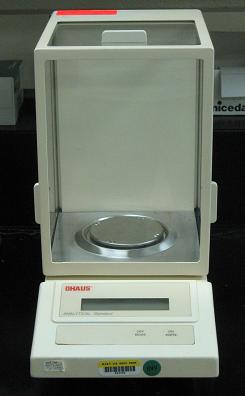

Balance - Precision
Ohaus AS200
Specifications:
- Capacity: 202g
- Readability: 0.1mg
- Linearity: ±0.1mg
- Stabilization Time: 4 seconds
- Sensitivity Drift (10-30° C): 2ppm/° C
- Pan size: 3.5" diameter
- Below Balance Weighing: Standard
- Free height above Platform: 9.3"
- Dimensions (w x h x d): 8.3" x 14.5" x 14.5"
- Operating temperature range: 5-40° C
Date of last Calibration: August 15, 2008
Calibration Report available by request: Kimberly Tomasi, A121, 301-975-4533.
TOP

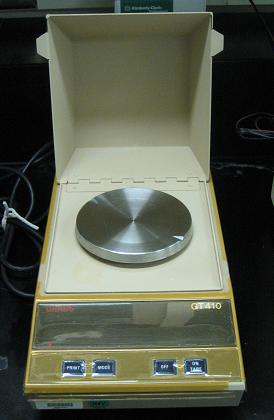

Balance - Analytical
Ohaus GT410
Precision: ±1mg
Specifications:
- Capacity: 410g
- Readability: 0.0001g
- Stabilization Time: 4 seconds
- Taring Range: 410g
- Taring Time: 1 sec
- Platform diameter: 4.9
- Dimensions (w x h x d): 7.5" x 3.5" x 12.75"
- Operating temperature range: 10-40° C
Date of last Calibration: August 15, 2008
Calibration Report available by request: Kimberly Tomasi, A121, 301-975-4533.
TOP
Balance - Analytical
Sartorius CP224S
Precision: ± 0.1mg
Specifications:
- Weighing capacity: 120g
- Readability: 0.1mg
- Tare range (subtractive): -120g
- Repeatability: <±0.1mg
- Linearity: <±0.2mg
- Response Time: <0.2s
- Operating temperature range: +10 to +30 °C
- Allowable ambient operating temperature: +5 to +40 °C
- Pan Size (inner diameter): 80mm
- Weighing chamber height: 232mm
Date of last Calibration: August 15, 2008
Calibration Report available by request: Kimberly Tomasi, A121, 301-975-4533.
TOP

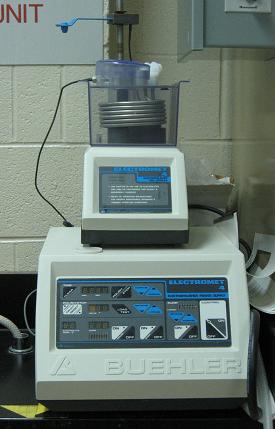

Electropolisher
Buehler Model: Electromet® 4
Polisher/Etcher Catalog number: 70-1831-115
Specifications:
TOP

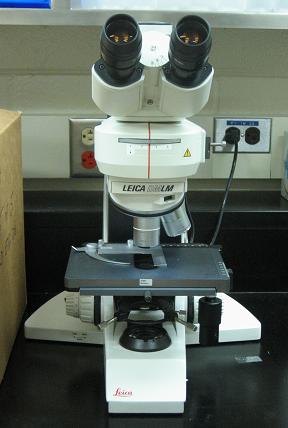

Microscope
Leica DM LM
Specifications:
TOP

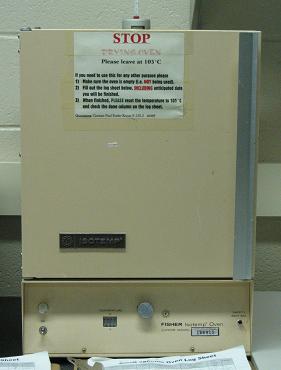

Drying Oven
Fisher Isotemp® Oven
Junior Model 201, Catalog number: 13-244-1
Specifications:
- Capacity: 1 cu ft
- Temperature range: 40 - 200° C
- Temperature Uniformity: ±0.5° C at 100° C, ±1.4° C at 200° C
- Maximum variation: ±0.8° C at 100° C, ±1.8° C at 200° C
- Heating Rate: 54 Min. to 100° C, 83 Min. to 100° C
- Dimensions outside (W x D x H inches): 16.125 x 16.5 x 22.875
- Dimensions inside (W x D x H inches): 12 x 12.25 x 11.25
*This is a drying oven. It can be use at anytime and does not require sign up*
TOP
Vacuum Oven
Barnstead Lab-line
Model 3608-5
Specifications:
- Temperature range: From slightly above ambience to 220° C
- Chamber dimensions: 10"W x 12"D x 10"H
- Volume: 0.7 cu. ft.
*To use this oven, logging your use is required.*
TOP

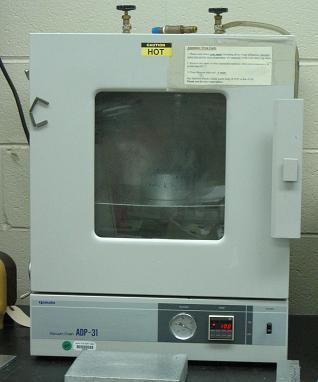

Vacuum Oven
Yamato ADP-31
Specifications:
*To use this oven, logging your use is required.*
TOP
pH Meter
Bench Top Meter
Fisher Scientific Education pH and °C
Specifications:
- pH Range: 0.00 to 14.00 pH
- pH Resolution: 0.01 pH
- pH Relative Accuracy: ±0.01 pH
- Temperature Range: 0.0-100°C
- Temperature Resolutione: 0.1°C
- Temperature Accuracy: 0.3°C
TOP
Pipettes
Rainin Pipetman®
Models:
P-20
P-200
P-1000
*Date of last calibration: August 15, 2008

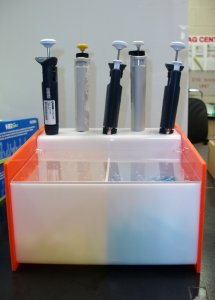

Oxford Benchmate® Pipettes
Models:
0.1 - 2 µL
40 - 200 µL
*Date of last calibration: August 29, 2008
TOP
Laboratory Press
Carver Laboratory Press Model C
The Model C is a manual, twelve ton, two column hydraulic lab press that is similar to the Mini C. The Model C is larger with a heavier construction and daylight to 18”.
Specifications:
- Clamping Force: 12 tons
- Platens: 6" x 6"
- Ram Stroke: 5.1"
- Daylight Opening: 0.75 to 18"
Contact: Mr. Juscelino Leao, 301-975-8867, juscelino@nist.gov
TOP

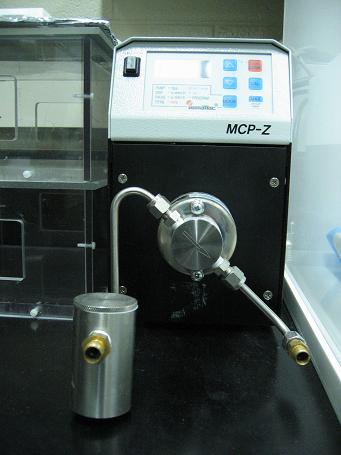

Gear Pump
Ismatec MCP-Z
Specifications:
- Duty cycle continuous from 60 to 6000 rpm
- Max rpm 60 to 6000
- Motor type 24 VDC, PMDC
- Motor (hp) 1/5
- Max flow rate with indicated pump head Pump head 07002-25 1.02 to 102 mL/min
- Pump head 07002-26 2.52 to 252 mL/min
- Pump head 07002-27 5.04 to 504 mL/min
- Pump head 07002-14 5.52 to 552 mL/min
- Pump head 07002-17 19.2 to 1920 mL/min
- Pump head 07003-02 34.8 to 3480 mL/min
- Pump head 07002-23 38.4 to 3840 mL/min
- Pump head 07001-80 38.4 to 3840 mL/min
- Pump head 07001-70 38.4 to 3840 mL/min
- Pump head 07001-40 54.6 to 5460 mL/min
- Pump head 07003-04 70.2 to 702 mL/min
- Temp range 104°F (40°C)
- Remote control Input speed control:0-5 or 0-10 VDC, 0-20 or 4-20 mA (DB15 female)
- On/off control: TTL contact (DB15 female) RS-232: 9600 or 1200 baud, 8 bit, 1 stopbit, no parity (DB9 female)
- Output 2 valve control outputs (DB15 female), additional RS-232 output for cascading (DB9 female)
- Power VAC 115/230
- Hz 50/60
- Dimensions 6"L x 10-1/4"H x 9-1/2"W
The manual is also available (pdf).
TOP
Refrigerator
VWR
Specifications:
- **No Information Available**
TOP

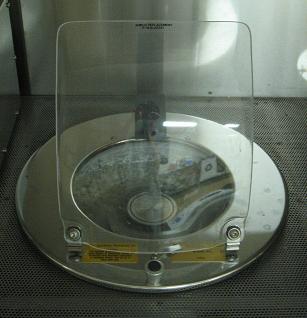

Spinner
Headway Research
Model: PWM202 Spinner
Specifications:
The PWM202 controller can drive the BD5 motor to its full 1/2 horsepower capability. The
top speed of the BD5 motor is 5,000 rpm. The motor is dc servo motors with a vacuum-thru-the
-shaft design for vacuum chucks and potentially a substrate lifter, working through the
motor shaft. The acceleration/deceleration ramp is adjustable over a range of approximately
0.5 to 4.0 seconds from zero to max speed. The three sequence timers can be set to one of
two ranges: 0.1 to 99.9 or 1 to 999 seconds or minutes or hours! The sequence is: Timer 1
at Speed 1, then Timer 2 at speed 2, then Timer 3 at Speed 3. A +24 vdc output from each
timer is available externally, for actuating dispense functions or other peripheral devices
during the active time of that timer. The PWM202 can control simple 1 and 2 fluid type
accessory dispensers.
Further specifications are given in the manual (pdf).
To use this spinner, please contact Sushil Satija. 301-975-5250, sushil.satija@nist.gov
TOP
Stirrers/Hot Plates
Corning PC-420
Specifications:
- Temperature range: 25-550° C
- Size: 5" x 7" Pyroceram® top
- Stir range: 60-1100 rpm
Corning PC-420D
Specifications:
- Temperature range: 5-550° C
- Size: 5" x 7" Pyroceram® top
- Stir range: 60-1100 rpm
Dylastir© Stirrer
Model 941006
*No information Available.*
TOP
VORTEX
Daigger Vortex
Genie 2
Specifications:
- The VORTEX-GENIE 2 mixer is classified as "Installation Category 2"
- Environmental: 0°C - 38°C, Humidity 95%
TOP

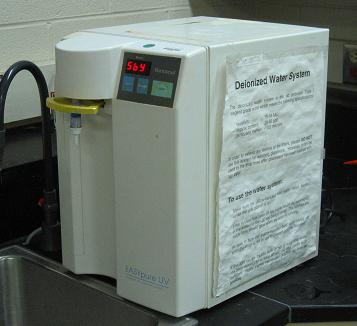

Ultra High Purity Water System
Barnstead/Thermoline
EASYpure™UV Series: 1053 Model: 7401
Specifications:
- Electrical 100-240 VAC
- Hertz 50/60
- Inlet Temp: FC 40-104°F (4-40°C)
- Maximum Flow Rates L Min: 1.0
- Maximum Inlet Pressure psig: 100
- Overall Dimensions: D 19 (48.3)
- Overall Dimensions: H 17.1 (43.4)
- Overall Dimensions: W 12 (30)
TOP
DI Water System
Provided by US Filters
Specifications:
- Resistivity: 15-20 MΩ
- Organic Content: 20-50 ppm
- Particulate Matter: <0.2 µm
TOP
Ultrasonic Cleaner
Branson
Model 2510-DTH
Specifications:
- Tank Capacity: 0.75 gal
- Tank Size (LxWxD): 9.5" x 5.5" x 4"
- Temperature Range: ambient to 69°C
- Temperature Accuracy: ±4°C
TOP

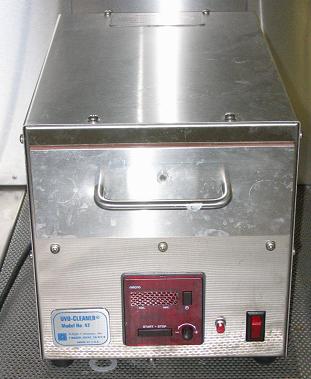

UVO-Cleaner
Jelight Company
Model 42
Specifications:
TOP
