| A127 || B147 || E131 || E132 || E133 || E134 || E136 || E137 || E138 |

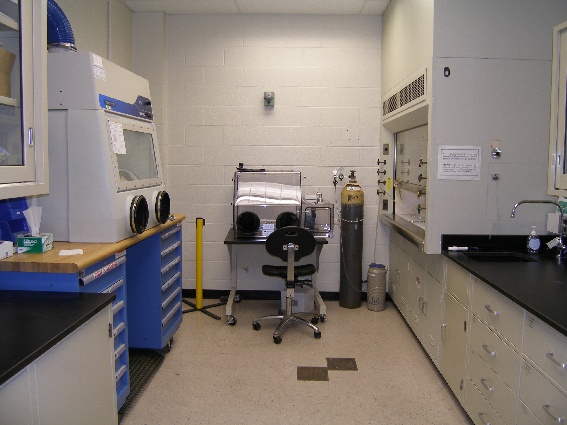

Laboratory B147 - General Chemistry Laboratory III
| Balance |
| Tube Furnace |
| Glove Box |
| Stirrer-Hot Plate |
Balance - Analytical
Ohaus GT410
Precision: ±1mg
Specifications:
- Capacity: 410g
- Readability: 0.0001g
- Stabilization Time: 4 seconds
- Taring Range: 410g
- Taring Time: 1 sec
- Platform diameter: 4.9
- Dimensions (w x h x d): 7.5" x 3.5" x 12.75"
- Operating temperature range: 10-40° C
Date of last Calibration: July 30, 2007
Calibration Report available by request: Kimberly Tomasi, A121, 301-975-4533.
TOP

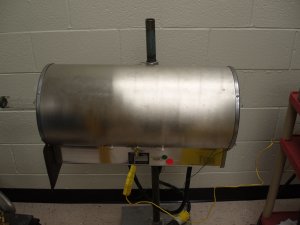

Tube Furnace
Thermcraft
Marshall 1136
Specifications:
- Maximum Operating Temperature: 1200°C
- Element Type: Heavy gage iron-chrome-aluminum wire wrapped around ceramic tube
- Internal ID: 1.5"
- Internal Length: 18.5"
- Voltage: 110V
- Power: 1980W
TOP

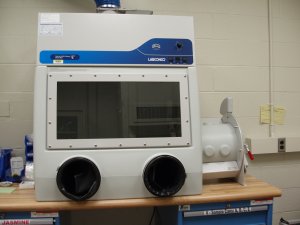

Glovebox
Labconco
Precise HEPA-Filtered
Specifications:
- Built-in blower with speed control capable of airflow from 13cfm to 100cfm
- Inlet and outlet HEPA filters, 99.99% efficieny on 0.3µ particulates
- Inside Dimensions: 33.5" W x 27.5" D x 25.0" H
- Transfer Chamber: 11.0" ID, 12" Long
To use the glove box, please contact:
TOP
Stirrers/Hot Plates
Corning PC-420D
Specifications:
- Temperature range: 5-550° C
- Size: 5" x 7" Pyroceram® top
- Stir range: 60-1100 rpm
TOP
Last modified 08-May-2008
|
