Spurion program for single crystal triple axis spectrometers

Tanya Riseman, NIST center for Neutron Research. Ext 8379. Room A111.

Index

• Introduction
• How to run on NCNR computers
• Help
• Quick reference
• Diagrams from the quick reference
• Screen shots
• Authors and contacts
• Distribution
• Compile

Introduction

"Spur" is a spurion program for single crystal triple axis spectrometers. Available for Linux (g77 FORTRAN compiler) and SGI operating systems.
Return to Index

How to run on NCNR computers

To run, on Jazz (SGI OS): type "spur".
To run on the instrument computers bt2, bt7 and bt9 (Linux OS), type "spurion"
Return to Index

Help

There is a help facility within the program Spurion (command "h"). To view Spurion's help file outside of the program in a choice of formats:

• HTML help file for spurion
• ASCII help file for spurion
• Latex help file for spurion
• Postscript help file for spurion
• DVI help file for spurion
• PDF help file for spurion

Return to Index

Quick reference

Jeff Lynn and Matt Woodward have produced a quick reference guide to Spurion.

• Original HTML Spurion quick reference file for spurion
• Latex Spurion quick reference file for spurion
• Postscript Spurion quick reference file for spurion
• PDF Spurion quick reference file for spurion
• HTML Spurion quick reference file for spurion

Return to Index

Diagrams from the quick reference

Diagrams from the quick reference guide to Spurion.

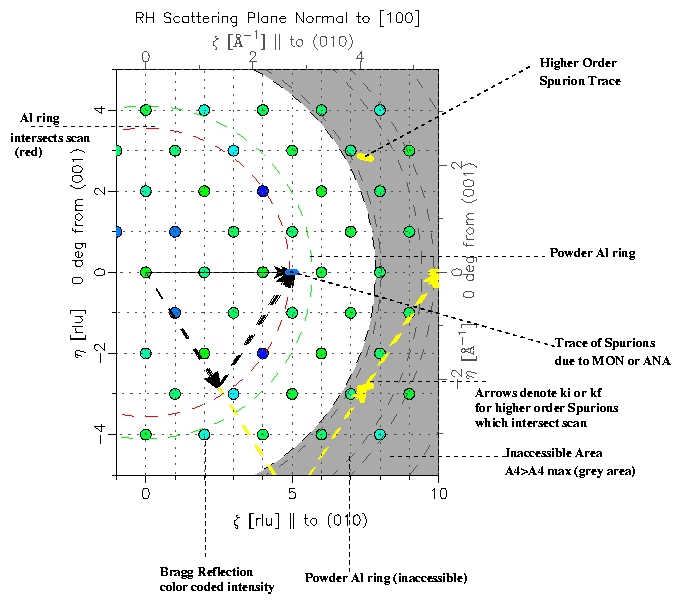

• Figure 1: The k-space diagram, with annotations explaining the features.


• Figure 2: The E-space diagram, with annotations explaining the features.

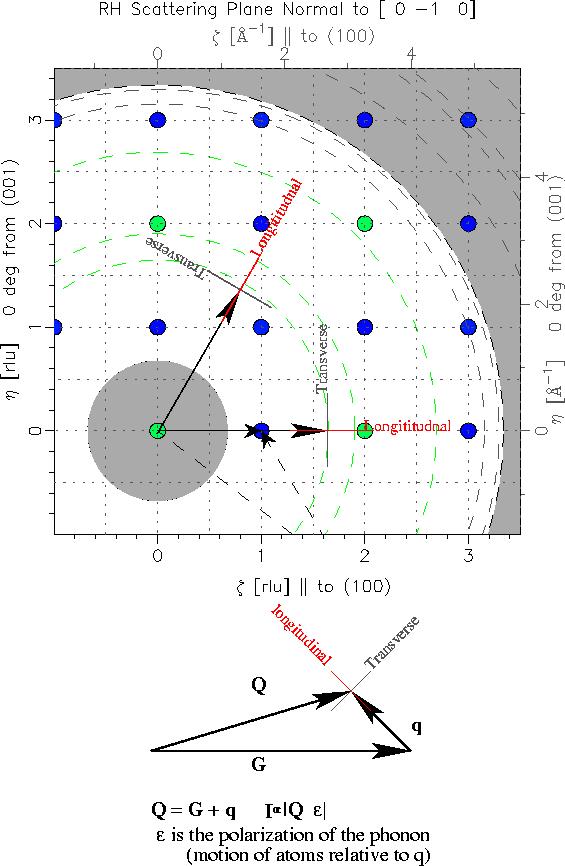

• Figure 3: Another k-space diagram, with annotations explaining transverse vs. longitudinal scans.



Return to Index

Screen shots

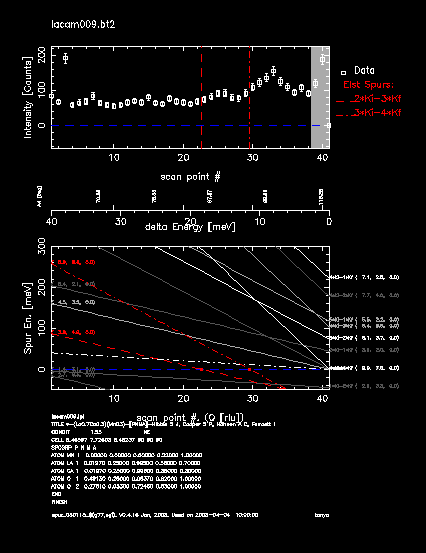

Return to Index

Authors and contacts

• SPURION was written by

  • Jeff Lynn, the dark ages, ca. 1970 (original punch-card version)
    NIST center for Neutron Research. Ext 6246. Room A126.
  • Carl Adams, 1997 - 2000 (graphics and Bragg Intensities)
    NIST center for Neutron Research. Now at St. Xavier University.
  • Tanya Riseman, 2001-2002 (scan graphics, menus)
    NIST center for Neutron Research. Ext 8379. Room A111.
• The LAZY and PULVERIX subroutines were originally written by

  • K. YVON, circa 1977-1989
    LABORATOIRE DE CRISTALLOGRAPHIE AUX RAYONS X
    UNIVERSITY OF GENEVA
    24 QUAI ERNEST ANSERMET, CH 1211 GENEVA, SWITZERLAND
    TEL 022 219355
    ADAPTED TO B6700 AT UCSD, HANS F. BRAUN, 7 FEB. 1979
    ADAPTED TO CDC 7600 AT BNL, D. E. COX, DEC. 1984
    modified 3.87 to prepare CPDF/PROFIL input file by P.ZOLLIKER

• The HELP subroutine was written by

  • Paul Kienzle, 1997
    University of Birmingham
    Birmingham, UK
• Matt Woodward (frank.woodward@nist.gov, ext. 6442) can also provide assistance in using this program.

Return to Index

Distribution

This distribution is ONLY for Linux and SGI Unix. The tar ball has been created using "tar -cvzf" under Linux, which includes gzip compression. It probably will not download and uncompress properly on Windows machines, which expect winzip. The tar ball ship_spur.tar contains several directories:

• bin: The target directory for the SGI or Linux binary. Make files in source directories ./help2latex and ./src_#### (e.g. src_0301) place binaries here.
• doc: The directory containing documentation in PDF, LaTeX, postscript and HTML formats.
• .doc/spurion: Target directory for HTML files produced by make files in the directory ../src_####.
• help: The directory containing the documentation in its "original" ASCII format, VMS-help style spurion.hlp.
• help2latex: FORTRAN Code to convert the help from its original VMS-help format spurion.hlp to LaTeX. Makefiles for Linux, SGI and Alpha-VMS.
• help_code: C library code for accessing the help file spurion.hlp from FORTRAN code.
• ref: Contains this html file (spur_overview.html) screen shots, the quick reference guide and associated diagrams.
• src_####. Source code directory for spurion program. The numbers in src_0301 correspond to a version date of January, 2003. The graphics package PGPLOT http://www.astro.caltech.edu/~tjp/pgplot is required, but is not be included in this distribution, due to licensing restrictions. You may have to modify the appropriate make file to specify the location of PGPLOT on your computer.
  Before the spurion program "../bin/spur_030115_g77" can run, certain shell environment variables need to be set for PGPLOT and the local help. Modify the script "runspurion_linux" or "runspurion_sgi" as needed and use this to start the program.

Return to Index

How to compile and generate documenation

The tar file includes directories with the following already made for Linux Redhat v7.2. For SGI, follow these directions using "makefile_*_sgi" instead of "makefile_*_g77".

• To create ./bin/h2l_auto (Required for converting spurion.hlp to spurion.html.)
  cd ./help2latex
  make -f makefile_h2l_g77
• To create ./help_code/help-paul-unx.o (Required help subroutine for spurion executable.)
  cd ./help_code
  make -f make_testhelp_g77 help-paul-unx.o
• To create the Spurion executable ./bin/spur_030115_g77 (requires ./help_code/help-paul-unx.o)
  You may rename it so it doesn't have the date stamp "_030115".
  cd ./src_0301
  make -f makefile_spur0301_g77
• To create LaTeX documentation in ./doc (requires ./help/spurion.hlp.)
  cd ./src_0301
  make -f makefile_spur0301_g77 make_tex

• To process LaTeX documentation, creating postscript and PDF files in ./doc
  cd ./src_0301
  make -f makefile_tex
• To create HTML documentation in ./doc/spurion (requires that the latex file has been made.)
  cd ./src_0301
  make -f makefile_spur0301_g77 make_html

Return to Index
